We are Ultrasound Professionals

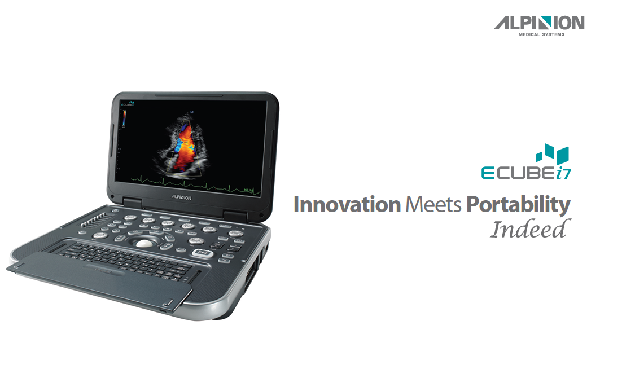

Innovation Meets Portability. Indeed.

알피니언의 이미징 기술과 다양한 트랜스듀서를 제공하는 E-CUBE i7은 다양한 진단영역에서 활용 가능합니다.
키보드의 위치를 사용자에게 가깝게 배치하고, 사용환경에 따라 열고 닫을 수 있는 슬라이딩 키보드 커버를 장착하여 세세한 부분까지 사용자를 배려하였습니다.

The innovative system architecture

E-CUBE i7은 기존 포터블 초음파 진단기의 최대 단점이었던 이미지 성능 문제를 개선하고자 하는 알피니언의 오랜 고민과 노력이 만들어낸 결과물입니다.

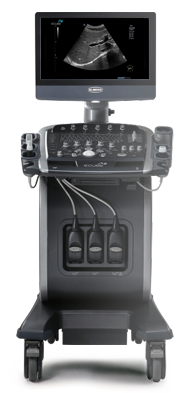

알피니언의 카트형 초음파 진단기의 안정적이고 강력한 아키텍쳐를 내장한 E-CUBE i7, 이제 포터블 초음파 진단기에서도 시간의 흐름에 상관없이
언제나 균일하고 뛰어난 이미지 성능을 만나 볼 수 있습니다.

Clinical Image

  • Liver

    Liver

  • Gallbladder stone

    Gallbladder stone

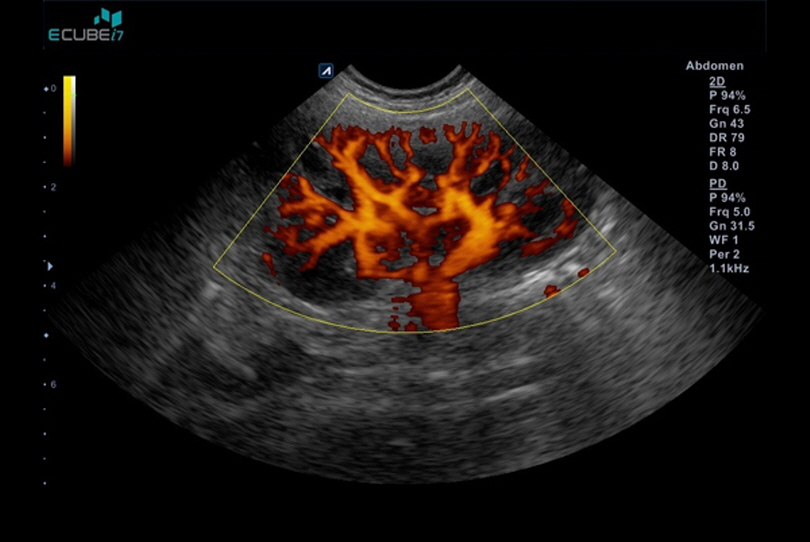

  • Renal perfusion in Power Doppler

    Renal perfusion in Power Doppler

  • Common caroid artery in Dual Live mode

    Common caroid artery in Dual Live mode

  • Auto Trace PW in CCA

    Auto Trace PW in CCA

  • Myoma in the uterus

    Myoma in the uterus

  • Color Doppler of multiple vessels in the endometrial mass

    Color Doppler of multiple vessels in the endometrial mass

  • Nabothian cyst and uterine fibroid

    Nabothian cyst and uterine fibroid

  • PW Doppler in the uterine artery

    PW Doppler in the uterine artery

  • Parasternal long axis view of heart in Dual imaging with SP1-5T transducer

    Parasternal long axis view of heart in Dual imaging with SP1-5T transducer

  • Color Doppler of heart

    Color Doppler of heart

  • Mitral valve in short axis view

    Mitral valve in short axis view

  • Pediatric echocardiography with SP3-8T transducer

    Pediatric echocardiography with SP3-8T transducer

  • Internal Jugular vein injection with Needle Vision™ Plus

    Internal Jugular vein injection with Needle Vision™ Plus

  • MCP joint and its tendon with IO8-17T

    MCP joint and its tendon with IO8-17T

  • Superficial vessle of the finger in Color Flow

    Superficial vessle of the finger in Color Flow

  • 17. Elbow joint injection

    Elbow joint injection

Excellent Imaging Quality

  • Crystal Signature™

    High class single crystal transducer technology

    알피니언의 세계 정상급 싱글 크리스탈 기술로 보다 높은 정밀함과 정확함을 더해드립니다.

    Single crystral marterial exhibits fewer poling varition
  • 고주파수 리니어 트랜스듀서, IO8-17T

    신체부위와 닿는 면적이 좁은 하키스틱 모양의 8-17MHz 주파수 리니어 트랜스듀서 IO8-17T는 근격골계, 소기관, 말초혈관계 검사하기에 적합합니다.

    High-frequency enhanced liner transducer image01
    High-frequency enhanced liner transducer image02
  • Optimal Clinical Environments

    Experience the Sliding keyboard cover and Enjoy the comfort.

    Optimal Clinical Environments
  • 초음파 진단기 사용 시 필연적으로 취하게 되는 진단 자세는 사용자의 손목, 팔꿈치, 어깨, 목, 등의 부위에 반복적으로 부담을 주게 됩니다. E-CUBE i7의 혁신적인 슬라이딩 키보드 커버는 이러한 근골격계의 피로도를 감소시켜 줍니다*

    * Society of Diagnostic Medical Sonography Industry Standard for the Prevention of Musculoskeletal Disorders in Sonography. May 2003.

    Sliding keyboard cover
Mobility
Mobility

1 hour battery life / 7.2kg Lightweight system

Fast boot-up
Fast boot-up

Less than 45 seconds

Library Quiet
Library Quiet

Library(30dB) / E-CUBE i7(31dB)

Extended transducer
Extended transducer

Connection up to 3 ports

  • White Paper

    A Study of Wrist Angles when using portable ultrasound system with a wrist supporting device

    Tae-Hoon Lee, Suh-Wo Choi, Hak-Jun Kim Department of Orthopedic Surgery, Korea University Guro Hospical, South Korea

Software Technologies
  • Needle Vision™

  • Xpeed ™ (Auto Image Optimization)

  • Auto IMT measurement

  • CW(Continuous Wave)

  • Panoramic Imaging

  • Stress Echo

  • 3D4D

이동형 초음파 영상 진단 장치

이 제품은 “의료기기”이며, “사용상의 주의사항”과 “사용방법”을 잘 읽고 사용하십시오.

광고심의필 : 심의번호 2015-I10-47-2495

Transducers
  • C1-6T
    C1-6T

    Convex transducer (1-6MHz)

    Application

    Abdomen, Renal, Fetal Echo, EM Gynecology O bstetrics MSK, Urology

  • C5-8NT
    C5-8NT

    Microconvex (5-8MHz)

    Application

    Abdomen, EM, Cardiac, Pediatric

  • L8-17H
    L8-17H

    High density linear transducer(8-17MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-12HWD
    L3-12HWD

    High density wide footprint linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts, Appendix

  • L3-12T
    L3-12T

    Linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts, Appendix

  • IO3-12
    IO3-12

    Intraoral transducer (3-12MHz)

    Application

    EM , Small Parts

  • IO8-17T
    IO8-17T

    High frequency hockey stick (8-17MHz)

    Application

    Small Parts, MSK

  • SP1-5T
    SP1-5T

    Single crystal Phased array transducer (1-5MHz)

    Application

    Abdomen, Cardiology, EM, TCD

  • SP3-8T
    SP3-8T

    Single crystal phased array transducer (3-8MHz)

    Application

    Abdomen, Cardiac, EM, Pediatric

  • EV3-10T
    EV3-10T

    Endocavity transducer (3-10MHz)

    Application

    GYN, OB, Fetal Echo, Urology, EM

  • EC3-10T
    EC3-10T

    Endocavity transducer (3-10MHz)

    Application

    GYN, OB, Fetal Echo, Urology, EM

  • VC1-6T
    VC1-6T

    Volume Convex (1-6MHz)

    Application

    Abdomen, OB, GYN, EM

  • CW2.0
    CW2.0

    Pencil type transducer (2.0MHz)

    Application

    Cardiac

  • CW5.0
    CW5.0

    Pencil type transducer (5.0MHz)

    Application

    Cardiac
